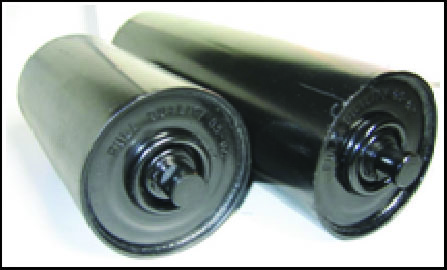

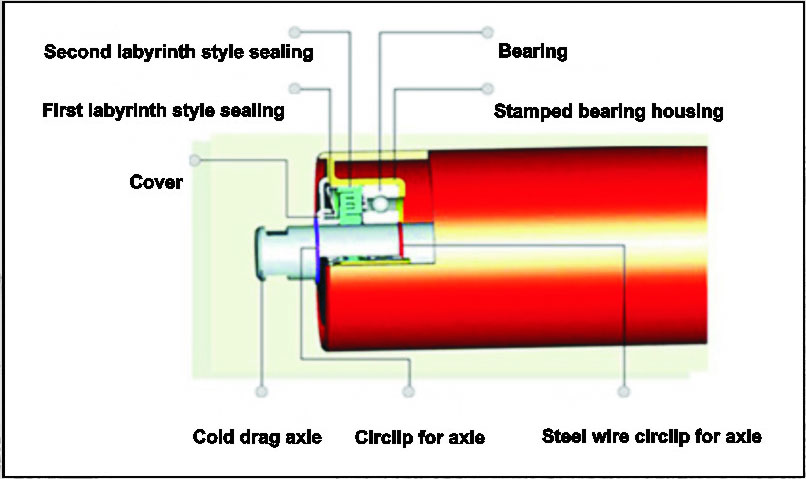

Bearing: Single and Double Row Deep Groove Ball Bearing 2RZ&2Z with C3 clearance.
Seals: Grease retaining inner seal with Multi-stage Labyrinth and Retention Cap with Outboard Rubbing Finger Seal.
Lubrication: Grease is Lithium Soap type grease with Rust Inhibitors.
Welding: Mixed gas shielded arc welding end.
Painting: ordinary painting, hot galvanized painting, electric static spraying painting, baked painting
Range: Our idlers ranging from 400 mm b/w to 2400 mm b/w

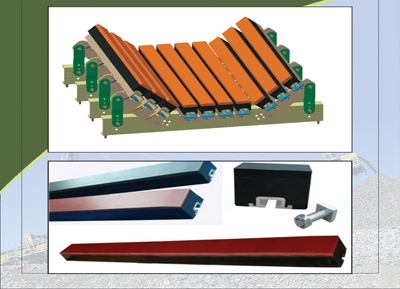

INDUS IMPACT PAD
Feature:

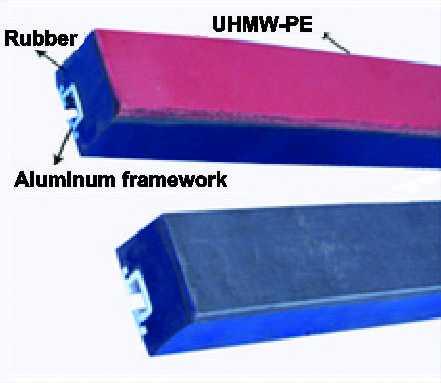

INDUS IMPACT PAD is a fusion of three different layers. The top layer is made of UHMWPE for smooth gliding of the conveyor belt. The middle layer is of rubber to cushion the impact load, while the lower layer is for fastening imapct pads on the support frame which is usually made up of aluminum. INDUS's sophisticated manufacturing facility employs the latest fusion bonding techniques to produce the trio-composite Impact Pad, no possibility of separation.

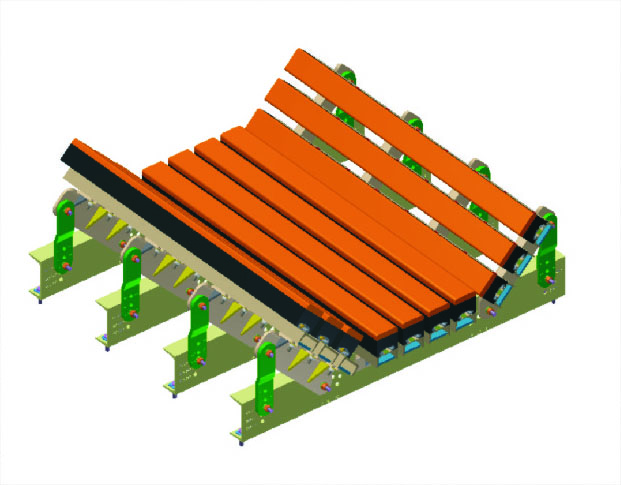

IMPACT PAD SUPPORT FRAME:
Support Frames are designed to suit wide range of applications for Impact Pad and the frames are separated as (1)Heavy Duty (2) Medium Duty (3) Light Duty.
ROWS OF PADS REQUIRED AT LOADING STATION
Belt Width (mm)
650
800
1000
1200
1400
1600
1800
2000
No. of Pads
6
7
9
10
12
14
15
17

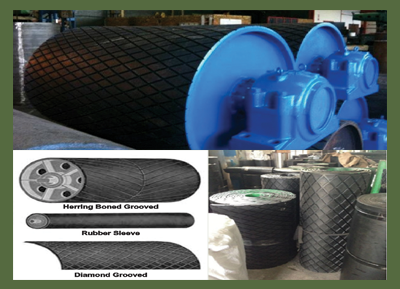

RUBBER PULLEY LAGGING

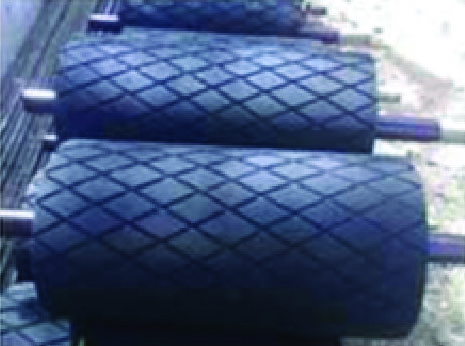

We design and develop wide range of rubber lagging sheet .Mostly diamond groove lagging .These diamond shape lagging is having high abrasion resistant property .Our Diamond grove lagging is equal quality of conveyer belt .

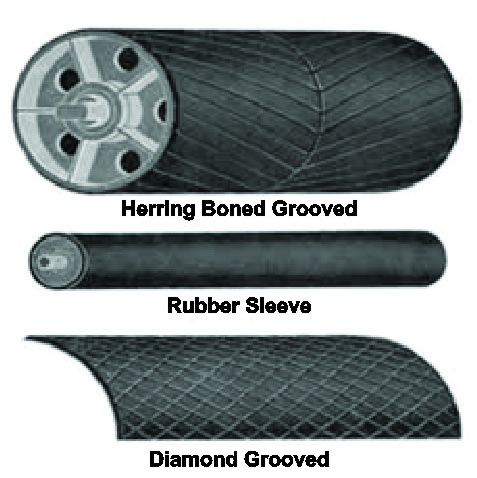

Various type of rubber lagging :-
1. HERRING BOND GROOVE
2. RUBBER SLEEVE.
3. DIAMONF GROOVE
Properties :-
Shore hardness:- 70 + 5 Shore A.
Sheet Dimension :- As per pulley face width and diameter .
Material :- Natural Rubber .
Types :- Common . Heat Resistance , Oil Resistance .
Advantage :-
# HIGH ABRASION RESISTANVCE .
# STRONG ANTI-TENSILE.
# EXCELLENT ANTI TEAR PERFORMANCE .
# IT CAN BE GLIED DIRECTLY , WHICH SIMPLIFIED RUBBER BOARD SURFACE TREATMENT PROGRAME .
# CORPORATE WITH METAL PRE TREATMENT AGENT AND COLD VALCUNIZED TWO COMPONANT NONFLAMMABLE NORMAL TEMPARATURE FAST CURING GLUE . IT CAN DRAMATICALLY IMPROVE ROLLER AND RUBBER BOARD STICKY RELAY .
Rubber Lagging Installation :-
SUPPPLIED RUBBER LAGGING INSTALLATION IS ALSO A PART OF OUR JOB . WE DO INSTALLATION OF RUBBER LAGGING BY OUR SPESALISED SKILLED WORKER AT OPTIMUM COST .

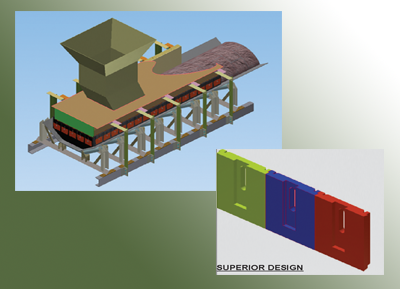

INDUS SPILL CARE
SKIRT BOARD SEALING SYSTEM
INDUS skirt board sealing system SPILL-CARE is designed and developed keeping in consideration the spillage problem at load zone Specially designed ,Overlap ,Segmented rubber ,blocks are absolutely suitable for spillage free loading zone .
TYPES OF SKIRT BOARD SPILL FREE :
SIDE SKIRT BOARD SEALING SYSTEM:-
Overlap design . segmented type special design . Side Skirt selling system is the ultimate solution for ABSOULUTE DUST FREELOADING ZONE .
BACK SKIRT SEALING SYSTEM :-
Overlap design , segmented type Block Skirt Sealing System is specially designed considering each conveyer resulting in ABSOULUTE SPILLAGE FREELOADING ZONE .
Keeping in considering various type of / shape of Mother plate at loading zone . INDUS has designed various types of Backing plates which provide absolutely sealing arrangement along with the rubber blocks .Keeping in considering various type of / shape of Mother plate at loading zone . INDUS has designed various types of Backing plates which provide absolutely sealing arrangement along with the rubber blocks .

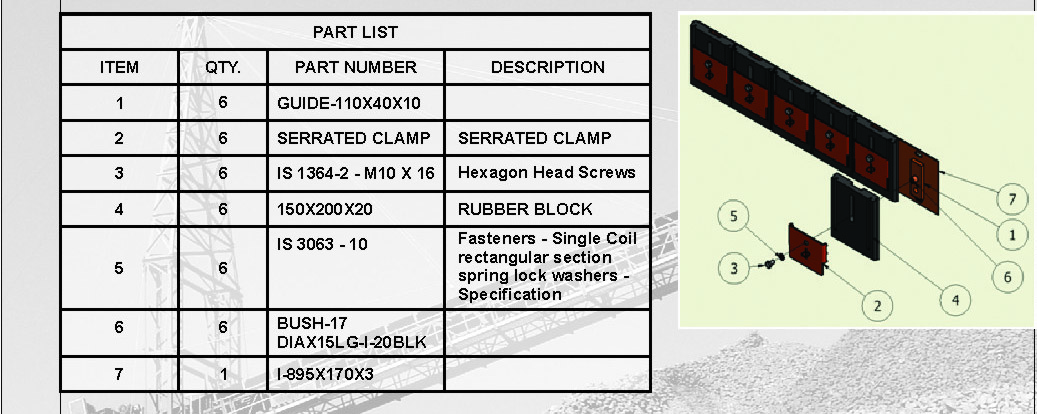

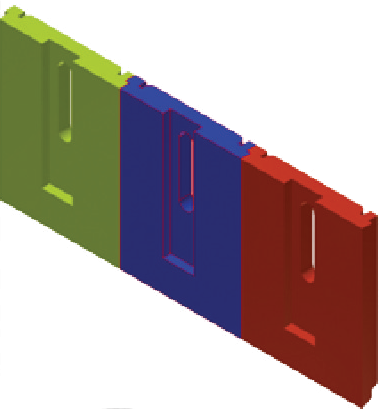

SEGMENTED SKIRT BLOCKS OVERLAP ARRANGEMENT
PROPERTIES :- MATERIAL :- NATURAL RUBBER AND POLYURETHENE BLOCK DIMENSION :- 150(lg) X 200 (ht) BLOCK THICKENESS :- 20 mm , 25 mm , 32 mm . BLOCK SHORE HARDNESS :- 55+5 SHORE – A . BACK PLATE :- MILD STEEL , STAINLESS STEEL. BACK PLATE THICKNESS :- 2mm , 3 mm , 5 mm. SIZE COMES IN :- 1, 1.2 &1.5 METER .
ADVANTAGES :-
# SEGMENTED SKIRT BLOCKS EASY TO SEAL AT DUSTY LOADING ZONE .
# POSITIVE LOCKING CLAMP KEEPS SKIRT BOARD RUBBERSECURELY IN A PLACE .
# QUICK RELEASE ACTION MAKE ADJUSTMENTS A SNAPS .
# ACCOMODATES ANY THICKNESS OF SKIRT MATERIALS .
# ELIMINATES NEEDS OF SKIRT BOARD SLOTING .
INDUS TRAC-N
SELF ALLIGNMENT BELT TRACKING DEVICE WITH DUST SEAL INSIDE
AVAILABILTY IN SIZES :-
FOR RETURN BELT – TRAC-N FLAT RETURN ROLLER
FOR CARRYING BELT - .TRAC N TROUGH ROLLER .
TRAC-N FLAT RETURN ROLLER
TRACK – N employs a unique highly effective tracking action on the return belt . , which is non demaging to the belt and kicks in immediately if the belt begins to drift of center .Because it does not rely with the contact of the belt , belt edge damage which occurs frequently which other tracking system is avoided .

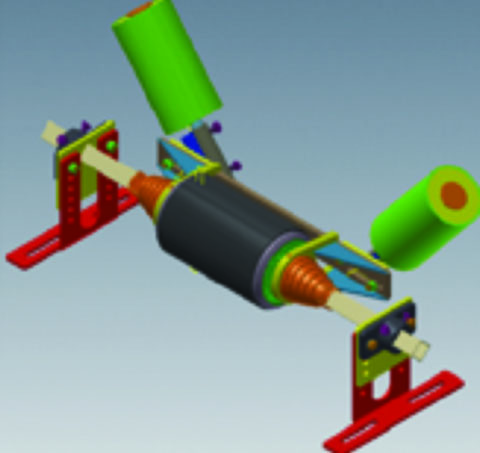

TRAC N TROUGH ROLLER
The TRACK-N roller specifically developed to accommodate the load carrying side of the belt . Due to troughed nature of the carrying side of the belt a different carrying configuration Is required . Wing roller id incorporated to our design to active our central pivot system . As the belt moves off center , the belt sides up the wing roll and thus causes the TRACK – N to pivot on it is internal pivot and steer the belt to center with minimum force .
Features
INSIDE PIVOT TO PROTECT JAMMING DUE TO DUSTY ENVIORRMRNT .
THREE LAYER DUST SEAL TO PROTECT CENTRAL PIVOT FROM DUST .
4-6 DIG SIDE MOVEMENT .
BOTH SIDE TAPPER DESIGN .
Advantages
OPERATE AT BOTH DRY AND WET CONDITIONS .
REQUIRE MINIMUM FORCE TO ACTIVE THE TRACKING MECHANISM .
NOT RELY ON THE EDGE OF THE BELT TO ACTIVE THE TRACKING MECHANISM .
